Electrical Measuring Transducers

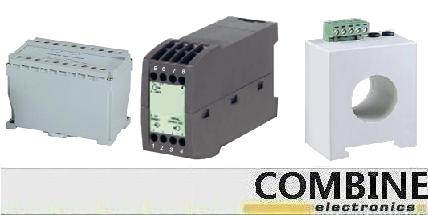

Electrical Measuring Transducers These mostly analog based devices are produced as requested by the customer. Therefore they are suited to a specific measurement task. During the installation process often an additional fine tuning of the output signal via potentiometer is possible.

Name Product show Description Remarks
COMBINE E950- I12 & U12 AC Current/Voltage Transducer(RMS Measurement)
COMBINE E950- I12 & U12 AC Current/Voltage Transducer

COMBINE E950-I11/U11 AC Current/Voltage Transducer
COMBINE E950-I11/U11 AC Current/Voltage Transducer
Measuring transducer for the transformation of sinusoidal alternating Current/voltage, with power supply terminal.
Measurement method: rectifier process Measurement input: alternating Current/voltage sinusoidal, arithmetic mean value measurement, effective value calibration
Measuring range limits: 0...1A to 0...7.5A;0...50 to 0...600 V
Measurement output: Unipolar and live-zero 0...1.0 to 0...20 mA resp. live-zero 0.2...1 to 4...20 mA or 0...1 to 0...10 V resp. live-zero 0.2...1 to 2...10 V
Also available with power supply via output circuit at 2-wire connection
Power supply: AC or DC power supply or wide DC, AC power pack tolerance
Housing for top-hat rail mounting

COMBINE E950-I12X Sieres Current Transmitter(Accuracy: 0.5)
• Designed and Tested to meet Requirements of IEC 688 and IS 12784
• Reliable SMD Technology
• High Insulation Level
• Higher load Capacity
• Easy onsite conversion between DIN rail or Panel Mounting
• Polycarbonate body, conforming to UL 94-VO

COMBINE E950-GXX Powe Factor/Phase Angle Transmitter
Measuring quantity :Power Factor / Phase angle
Measuring Principle: Measurement of Zero crossing Interval
Nominal Input Current: 1A or 5A CT Secondary (0.01 to 10A) Voltage: 110, 110, 230, 240, 400, 500V (10 V - 660V)
Measuring Ranges: 0.9 Cap - 1 - ind-0.5
0.8 Cap - 1 - ind-0;0.5 Cap - 1 - ind-0.5;0.5-ind -0 - Cap - 1 - ind - 0 - cap 0.5 ;
Output Quantity Load Independent DC Voltage or DC Current (Unipolar / Bipolar)
Output Range Current: 0-1/ 0-5/0-10/0-20/4-20mA, -1....0...1 to-20...0...20mA (Bipolar)
Voltage: 0 -10V/ -10....0 lOV(Bipolar) Option: Dual Output
Ripple ≤ 2% P-P

COMBINE E950-U22 Sieres Voltage Transmitter(Accuracy: 0.5)
• Designed and Tested to meet Requirements of IEC 688 and IS 12784
• Reliable SMD Technology
• High Insulation Level
• Higher load Capacity
• Easy onsite conversion between DIN rail or Panel Mounting
• Polycarbonate body, conforming to UL 94-VO

Combine E950-PXX Active power Transmitter
Measuring quantity: Active Power, Reactive Power
Measuring Principle :Time Division Multiplication
Nominal Input Current: 1A or 5A Secondary (0.01 to 10A) Voltage: 110/, 110, 230, 240, 400, 500V(10 V - 660V
