Precision Air Pressure Regulator

Precision Air Pressure Regulator This Precision Air Pressure Regulator is a high precision, multi-stage pressure regulator. This pressure controller provides the highest level of regulation accuracy and repeatability available. It is ideal for applications that call for the utmost of control and maximum stability under variable operating conditions. A stainless steel measuring capsule is used as a sensing element to activate the high gain servo balanced control mechanism in which the main valve is controlled by a pilot valve.This allows for greater accuracy and eliminates many of the problems associated with conventional regulators using range springs and diaphragms.

Name Product show Description Remarks

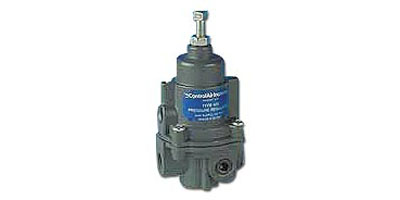

EP 1100 Precision Air Pressure Regulator
EP 1100 Precision Air Pressure Regulator
Flow Capacity:14 SCFM (25m3/hr.) at 100 psig (700 kPa) supply
20 psig outlet (140 kPa) outlet.
Exhaust Capacity:5 psig (35kPa) above 20 psig (140 kPa) setpoint
EP 1100 - 2 SCFM (3.4 m3/hr.)
EP 1100HR - 10 SCFM (17.0 m3/hr.) (High Relief)
Sensitivity:1/8" (3.2mm) water
Pilot Pressure Chamber Bleed Rate:less than 0.08 SCFM (0.15m3/hr.)
Effect of Supply Pressure Variation:of 25 psig (170kPa) on outlet less than .005 psig (.03 kPa)
Supply Pressure, Maximum:150 psig (1050 kPa)
Weight:1.4 lb. (635g)
Port Sizes:1/8", 1/4", 3/8"
Gage Ports (2):1/4"
Output Pressure Ranges:2-40 psi, 2-60 psi, 2-120 psi
Mounting Options:Pipe or panel
Materials:Body: diecast zinc alloy. Capsule and adjusting screw: stainless steel. Assemblies: stainless steel, brass, plated steel, acetal. Diaphragms: Buna-N elastomer and polyester fabric. Knob: phenolic plastic.

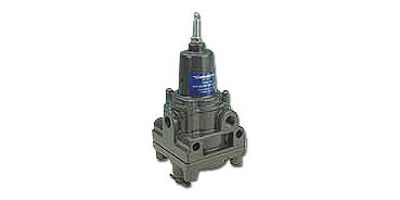

TYPE350 Air Pressure Regulator
TYPE350 Air Pressure Regulator

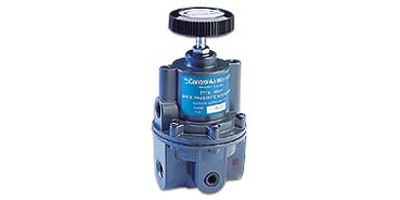

TYPE 700BP

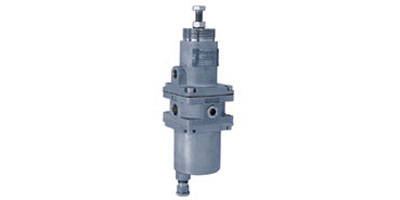

TYPE 400

TPYE300
