 X55-300 Series - Pressure-to-Current Converters |
 |
X55-300 Series - Pressure-to-Current Converters
Ranges up to 100 psig
Two or four-wire models
Fast responding solid-state design
Detachable electronics with automatic pressure seal
Insensitive to vibration
Mounts in any position
Front accessible zero, span and setpoint adjustments
Front accessible output monitor testjacks
Loss-of-air alarm indicator and output signal
Optional high or low pressure adjustable setpoint
3-times maximum rated pressure without damage |
|
| X55-600 Manifold & Rack Mount Chassis |
 |
X55-600 Manifold & Rack Mount Chassis |
|
| X55-600-EX Explosion Proof I/P Transducer |
 |
X55-600-EX Explosion Proof I/P Transducer Explosion Proof Housing Input: 4-20mA Output: 3-15, 3-27 or 6-30 psig Ranges Non-standard ranges available Hard to Plug Design Low Air Consumption (0.002 SCFM) No Pre-regulator required Supply Pressure to 120 psi Vibration and shock Resistant Mount in any Position 0.2% of Span Accuracy Reverse/Direct and Split Range Operation -40 to +150癋 Operation Worldwide approvals
|
|
| X55-600-N4 NEMA 4 I/P Transducer |
 |
X55-600-N4 NEMA 4 I/P Transducer
NEMA 4 Housing
Input: 4-20mA
Output: 3-15, 3-27 or 6-30 psig Ranges
Non-standard ranges available
Hard to Plug Design
Low Air Consumption (0.002 SCFM)
No Pre-regulator required
Supply Pressure to 120 psi
Vibration and shock Resistant
Mount in any Position
0.2% of Span Accuracy
Reverse/Direct and Split Range Operation :-40 to +150癋
Worldwide approvals |
|
| X55-600-GP General Purpose I/P Transducer |
 |
X55-600-GP General Purpose I/P Transducer
The Ronan X55-600 Series I to P transducers are reliable, stable, accurate and versatile. But, more important, they are "Hard to Plug." The wide dynamic range on the control elements and associated solid-state technology allows the circuitry to compensate, even when passageways become partially obstructed. The technology and the physical design actually allows contaminates to "blow through." Additional features include, high immunity to shock and vibration, extremely low air consumption, high SCFM output, and high stability over temperature and input pressure changes. All these features make the Ronan I/P the best choice for all applications in any industry. |
|

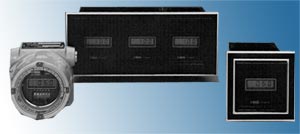

| X54-200/X54-202 Digital Indicators |
 |
X54-200/X54-202 Digital Indicators
Loop Powered Indicators Provide On Site Local or Control Room Display of Critical Process Variables
Explosion-proof (for Class I, Division 1, Groups B, C, D and weatherproof installations |
|
