Ronan Leak Detection Measurement

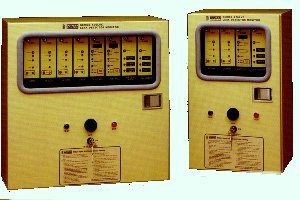

X76LVC Leak Detection System
The Series X76LVC is designed to monitor liquid level, vapor density, pressure and hydrostatic pressure. The system generates an alarm and may shut down specific facilities if preset parameters are exceeded. The microprocessor based system provides visual and audible alarms, self-diagnostics and sensor failure indication, fail-safe shutdown and auxiliary switch outputs for communications to a facility抯 remote displays.

X76ETM Electronic Tank Monitoring System
Tank Inventory up to Eight Tanks
Tank Leak Testing
Product Line Leak Testing
Ground Water and Vapor Well Monitoring
High and Low Level Alarm Monitoring
Secondary Containment Monitoring
Modular Design for Maximum Reliability
Double-wall Pipe Monitoring
Dry Contact Inputs
Intrinsically Safe Interfaces
Remote Alarm Capabilities
Dual RS-232C Interface
Dry contact Alarm Outputs
Triac Alarm Outputs
Battery Backup
Non-volatile Memory
316SS Chemical Probes

X76AM-4 Alarm Cont. Input Module

X76-4X Secondary Containment Monitors
NEMA-4X Weather-Tight Enclosure Ideal for Outside Aboveground Storage Tanks
Continuous Monitoring for All Double Walled Tanks and Piping
High and Low Level Alarms
Positive Pump Shutdown
Remote Alarm Capabilities
Up to 6 Auxiliary Relays
Flexible Modular Design for Future Expansion and Easy Maintenance
Intrinsically Safe Interface
UL Listed

JT-H2 Pipe Line Pressure Sensor
The Model JT-H2 Pipe Line Pressure Sensor is used with the X76LVC or the X76LVCS Leak Detection Systems. The Model JT-H2 does not require a mechanical regulator. This state of the art approach to the line leak detection provides the highest level of protection against leaking product into the ground for short or extended periods of time.

X76ATM Automated Tank Monitor
Interface to X76ETM or X76LVCS via direct serial or a modem connection
Monthly Monitoring for 0.2 gph. No Shutdown Required
Volumetric Tank Tightness Testing, 0.1 gph. No Shutdown Required
Inventory Reconciliation
Statistically Combines Multiple Tests for Higher Accuracy
Ronan Video Annunciator for Alarm Logging and Quick Diagnosis
Real-Time Monitoring
Interface to Other Leak Detection Systems
Remote Monitoring of Equipment Not Belonging to Ronan
UL Listed
