Camille Bauer AG Camille Bauer AG solves successfully your measuring tasks for more than 50 years now. Our products are well-known under the brands SINEAX, EURAX, SIRAX and KINAX. We develop, produce and put our products to the market directly from Wohlen. The world-wide distribution is guaranteed via the sales organisation GMC instruments. It is our top priority to meet the changing market demands within our standard products and especially within the custom made products. Although we have a global market, the local requirements and regulations are always taken into consideration. It is important to us that we meet the deadlines for newly launched products and delivery dates. Our commitment to the client continues even after the sale has been completed. Innovative and systematical thinking determines our activities. All product groups have been designed in a comprehensive and integrated manner. The interaction between hardware and software is of utmost importance. Our product program consists of the following: Heavy current engineering Angular position engineering Process control engineering


Name	Product show	Description	Remarks
SINEAX V611 Temperature Transmitters		Measured quantity and measuring range can be programmed with a PC: facilitates planning and project work, short lead-times, minimal inventory Measuring transducer with 2-wire connection for field use in close proximity to the process Open-circuit sensor and short-circuit monitoring, defined output performance in the event of disturbance With or without programmable auxiliary power connection Small and compact for optimized space utilization (housing is only 7 mm wide)

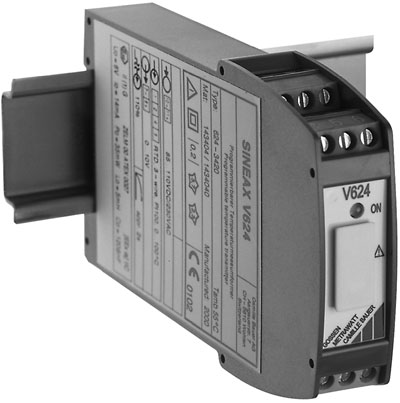

SINEAX V624 Temperature Transmitters		The SINEAX V624 converts measured quantities (i.e. signal from a thermocouple or a resistance thermometer) into a proportional, analog output quantity. Measured quantity and measuring range can be programmed with a PC: facilitates planning and project work, short lead-times, minimal inventory
SINEAX VK636 Head Temperature transmitters		Measuring transducer with bus connection per EN 50 170 and IEC 61 158-2 Digital communication and power supply via the bus line Measured quantity, measuring range and other parameters programmable with class 2 master Profibus profile version 3.0 Minimal current consumption (< 12 mA) Open-circuit sensor and short-circuit monitoring Terminals with captive screws Available with "intrinsically safe" explosion protection per EEx ia-ib IIC T6 Interface: output terminals
SINEAX VK626 Head Temperature transmitters		Digital communication and power supply via the 2-wire output line Measured quantity, measuring range and other parameters programmable with PC, suitable HART interface and appropriate software Electrical isolation between input and output: prevents measurement value distortion caused by potential transfer Measurement output: 4 to 20 mA, 2-wire connection Open-circuit sensor and short-circuit monitoring / defined output performance in the event of disturbance Terminals with captive screws Available with "intrinsically safe" explosion protection per EEx ia IIC T6 Interface: output terminals
SINEAX VK616 Head Temperature transmitters		Measured quantity and measuring range can be programmed with a PC: facilitates planning and project work, short lead-times, minimal inventory Integrated cold junction compensation Measurement output: 4 to 20 mA, 2-wire connection Optionally available with or without electrical isolation between input and output: prevents measurement value distortion caused by potential transfer Open-circuit sensor and short-circuit monitoring / defined output performance in the event of disturbance With or without auxiliary power terminals (prog. from 12 to 30 V) Terminals with captive screws Available with "intrinsically safe" expl. protection (EEx ia IIC T6) Serial interface
SINEAX V608 Temperature transmitters		Measured quantity and measuring range can be programmed with a PC: facilitates planning and project work, short lead-times, minimal inventory Integrated cold junction compensation Measuring transducer with 2-wire connection for field use in close proximity to the process Measurement output: 4 to 20 mA Open-circuit sensor and short-circuit monitoring / defined output performance in the event of disturbance With or without auxiliary power terminals (prog. from 12 to 30V) Small and compact for optimized space utilization Available with "intrinsically safe" explosion protection per EEx ia IIC T6 Serial interface Housing for top-hat rail mounting
