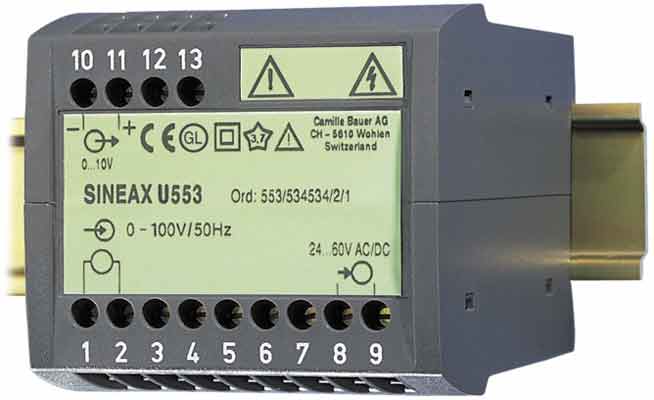

Measuring transducer for the transformation of sinusoidal or distorted alternating voltage,
with power supply terminal
Measurement method: logarithmic process
Measurement input: alternating voltage, sinusoidal or distorted, true RMS value measurement
Nominal input voltage: 0...20 to 0...690 V
Measurement output: unipolar and live-zero
0...1.0 to 0...20 mA resp. live-zero 0.2...1 to 4...20 mA or
0...1 to 0...10 V resp. live-zero 0.2...1 to 2...10 V
Power supply: wide DC, AC power pack tolerance
Standard as marine version per Lloyd’s Register of Shipping
|
