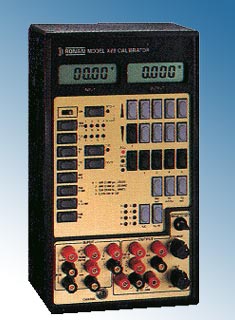

With the introduction of the X88, Ronan has again outclassed the competition in the portable multi-function calibrator market. The tradition of high-accuracy and reliability in our field proven X85 and X86 calibrators has been carried on in the X88. In addition, we have added those important features and capabilities our customers have been requesting. The result is the most value-packed field calibrator available in the world- But, the X88 isn't just a field instrument. With the AC adapter and NIST traceable calibration certificate, the X88 can actually provide the accuracy needed for a laboratory grade calibration standard. Ronan can also provide periodic recertification upon request. The X88 is truly a champion in a strongly competitive arena.
Summary of Key Features and Capabilities
| Functions |
X85 |
X86 |
X88 |
| Read/Source mV and Voltage Signals |
YES |
YES |
YES |
| Read/Source mA Signals |
YES |
YES |
YES |
| Read/Source Resistance Signals |
YES |
YES |
YES |
| Read/Source Frequency Signals |
* |
* |
YES |
| Read/Source T/C mV Signals |
* |
* |
YES |
| Read/Source RTD & T/C Signals in F or C |
N/A |
N/A |
YES |
| Dual 4.5 Digit LCD Digital Display |
single |
YES |
YES |
| Number of Programmable Output Levels |
2 |
4 |
5 |
| Simulates 2-Wire Transmitters |
YES |
YES |
YES |
| 24 Vdc Power for 2-Wire 4-20 mA Loops |
N/A |
N/A |
YES |
* = Available with plug-in adapter accessory
N/A = Not Available
