X85系列校准仪
Model X85 [X85]
|

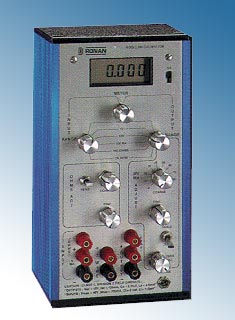

Ronan's Model X85 Calibrator with 4-1/2 digit LCD display, calibrates instruments and systems that utilize current, voltage or ohms inputs and outputs. The X85 features resistance capability allowing calibration and measurement of Resistance Temperature Detecting systems in addition to the usual mA and volt ranges. The X85's meter input/output switch allows you to monitor an input variable while simultaneously supplying a preset & calibrated output signal, ideal for signal transmitter calibration. Isolated floating power supplies maintain high input-output isolation while the digital meter monitors either input or output variables. You can also accurately simulate a 2-wire transmitter in a voltage-powered current loop by utilizing the X85's set of 2-wire terminals. Rugged, lightweight, and fully portable, the X85 comes with a convenient, protective carrying case and is powered by a replaceable nickel/cadmium battery. If you prefer an LED display, specify Ronan's Model X85A Calibrator. Reference Junction networks are available when easy thermocouple operations are required.
Related Support Material : Model X85
Key: [L] = Registration Required - [R] = Reps Only
|
 |
Knowledge Base |
 |
No Records | |
|
FAQs |
|
No Records | |
|
Documents |
|
|
 |
|
|
 |
X85 I&O Manual [L] |
|
|
|
|
|
|
|
|
X85 Datasheet[L] |
|
|
|
X85 RJ Datasheet [L] |
| | | | |
