KINAX SR709/719位置反馈变送器 |
|
|

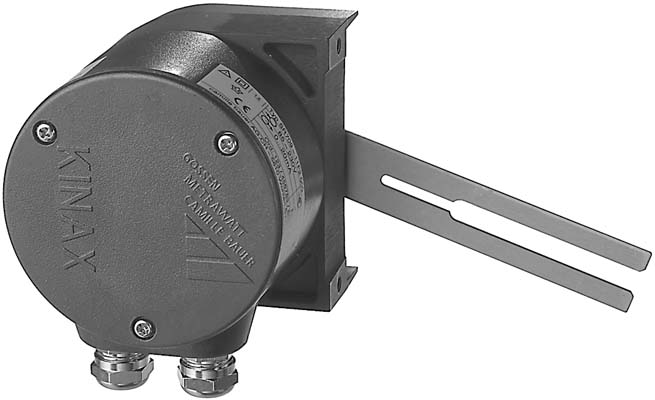

Measuring transmitter for acquiring stroke travel at valves, butterfly valves, slides and other actuators.
The transducer converts the measured quantity into a load-independent direct current which is proportional to the measured value.
- Patented contactless capacitive system / wear-free
- Analog measuring method, practically infinite resolution
- Stroke travel measuring range: 0.. 10 to 140 mm
- Measurement output: 0.. 1 to 0 / 4.. 20 mA / 2, 3 or 4-wire connection
- Available with "intrinsically safe" explosion protection per EEx ia IIC T6, can be used in explosive atmospheres
- Measuring range is adjusted by varying the leverage, fine adjustment with potentiometer / optimized adaptation of measuring spans to individual requirements
|
