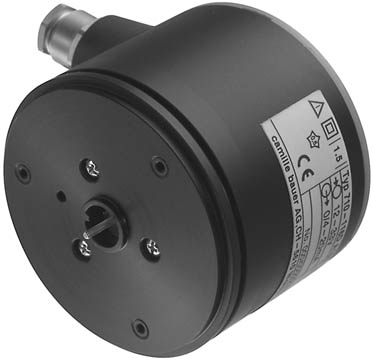

The KINAX WT 710 converts the angular position of a shaft into a load-independent direct current signal, proportional to the angular position.
* Measuring range limits 0...5 to 0...270°
* Measuring output: DC current signal (load-independent, 2-, 3- or 4-wire connection)
* Potentiometer for adjusting span / Optimum matching of desired measuring range
* Direction of rotation: Output signal increases for clockwise or counter-clockwise rotation
* Capacitive scanning system / No wear and low annual maintenance
* Low influence from bearing play, < 0.1%
* Accuracy =0.5% for ranges <150°
* Torque < 0.001 Ncm
* Drive shaft fully rotatable without stops at instruments without addional gear
* Available with type of protection "Intrinsic safety" EEx ia IIC T6 / Can be mounted in hazardous areas
* Unit in field type housing / Compact for building onto other equipment and plant
|
