FRKP2單柴油液位元控制開關
|
型號及名稱 |
FRK P2 |
|
柴油位元控制開關 |
|
輔助供壓 |
12V/24VDC |
|
輸出觸點 |
彈簧套筒加頭400MA,24VDC |
|
輸入感測器 |
內置感測器 |
|
靈敏度 |
無 |
|
跳閘時間延時 |
少於1秒 |
|
重量 |
- |
|
裝置 |
100克 |
|
尺寸（mm）裝置 |
|
|
外形尺寸（長寬直徑） |
|
|
感測器 |
18（直徑）x75(長) |
|
外形尺寸 |
|
|
|
|
|
|
|
|
| Application Areas: |
| The Diesel level control relays from Minilec can operate the driven diesel pumps by sensing fuel level in the diesel fuel tank in the generator sets or engines. The diesel level sensor probes are made up of infrared optical Transmitter & Receiver. The fork tipped sensor has to be inserted in the diesel, which interrupts the infrared optical continuity & gives output signal to the relay. The basic diesel level controller is a single relay in DIN Rail mounted enclosure for single Level Stop / alarm function. Multiple relays can be used for additional alarm functions like VERY HIGH or VERY LOW levels or for start & stop function. Single Relay is used with one optical probe. | |
|
|
| Technical Specifications: |
|
|
|
|
|
Specifications |
| 1 |
Auxiliary Supply |
12 V / 24 V DC |
| 2 |

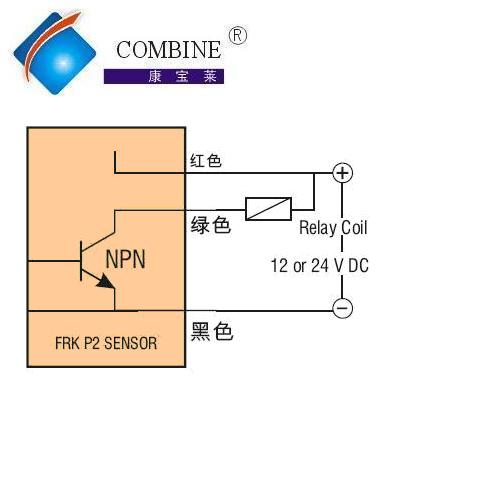

Output Contacts |
Open Collector 400 mA @ 24 V DC |
| 3 |
Input Sensors |
Built-in sensor |
| 4 |
Sensitivity |
N. A. |
| 5 |
Trip Time Delay |
Less than 1 sec |
| 6 |
Weight |
Unit —; Sensor (each) 100 gms |
| 7 |
Dimensions (mm) |
Unit Overall (L x W x D) —; Mounting (L x W) — |
| 8 |
Sensor |
Overall 18 (Dia) x 75 (L) | |
|
|
|
|
