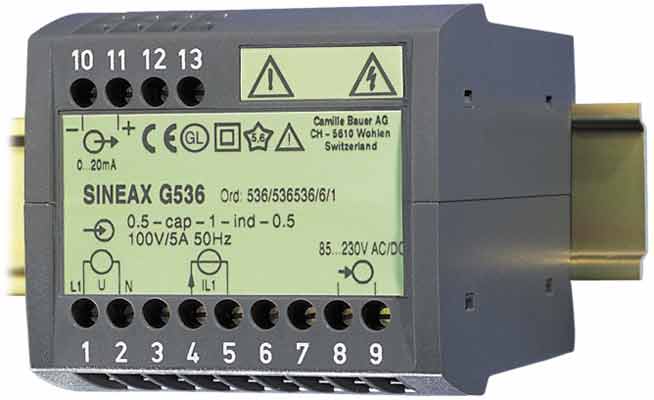

SINEAX G536/PQ502/P600功率因數或相位角變送器 |
|
|
輸入：單相、三相電流、電壓(平衡負載)
電流最大5A，電壓最大690V
標準輸出：0/4~20mA 0~10V
輸出類型：角度值φ，功率因數COSφ
測量範圍：-180°~180°，-1~0~1~-1
35mm導軌安裝
測量精度：0.2%
供電：24~60VDC/AC，85~230VDC/AC
|
Common device features
|
| Device function |
| Power factor/phase angle/phase angle differences |
|
yes |
| Nominal frequency |
| 16.7 Hz |
|
yes |
| 50/60 Hz |
|
yes |
| 400 Hz |
|
yes |
| Output |
| Voltage |
|
yes |
| Current |
|
yes |
| Live zero |
|
yes |
| bipolar |
|
yes |
| Output type |
| Analog outputs |
|
1 |
| Measurement output |
| Current |
|
yes |
| Power supply |
| Universal |
|
yes | |
|
|
|
|
| |
|
|
| |
|
 EURAX G536 |
| EURAX G537 |
| SINEAX G536 |
| SINEAX G537 | |
|
|
|
|
